Horizontal directional drilling (HDD) is one of the main ways to install or replace gas and oil pipelines in cities without opening a trench. The crew drills a guided, curved bore under streets, railways, or waterways, then pulls the pipe through the finished path. This approach keeps traffic moving, reduces surface damage, and helps projects meet environmental and right-of-way limits—especially on river crossings and congested urban corridors.
But “no-dig” does not mean “easy.” Urban HDD is noisy and unpredictable. Buried utilities, power lines, steel structures, and rebar can distort signals. Electromagnetic interference from traffic systems and high-voltage lines can make walkover tracking unreliable. Add mixed soils, drilling fluid behavior, and strict depth tolerances, and you get a job where the locating system becomes a critical safety and quality tool—not just a convenience.
That’s the exact scenario DigiTrak F5 was built for: pipeline HDD where crews need fast, repeatable locating in interference-heavy environments, plus clean documentation of the bore.
What DigiTrak F5 does on pipeline HDD jobs

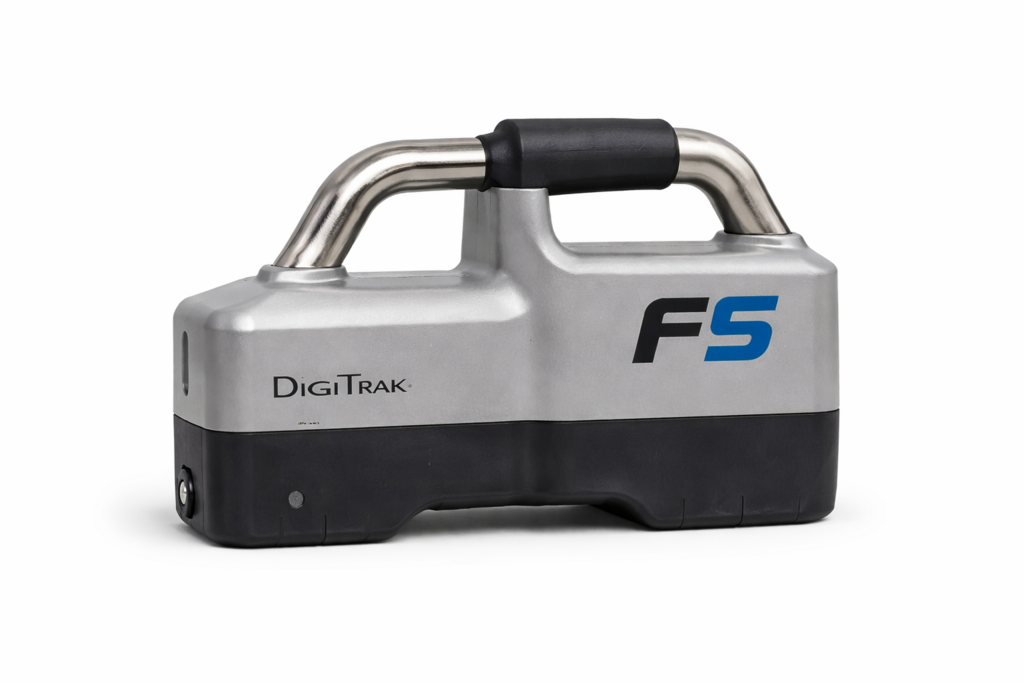

DigiTrak F5 is a locating system used to track and steer the drill head during HDD. A transmitter (sonde) sits in the drill head and emits a signal. The surface receiver detects that signal and calculates key data such as:
- Depth
- Pitch and roll
- Heading / steering guidance
- Position along the planned alignment
The operator uses those readings to keep the pilot bore on the engineered path. For gas and oil projects, this is not optional. The bore must stay within design tolerances, maintain separation from existing utilities, and prove compliance during inspections. That is why logging matters: F5 supports “log-while-drilling” style workflows where depth and angle are captured rod-by-rod to produce a verifiable bore profile at the end of the run.
Why interference matters in oil & gas pipeline work
Pipeline HDD often happens where interference is worst:
- under highways and major intersections
- near power distribution lines
- in industrial zones with dense buried infrastructure
- around reinforced concrete, rebar, and steel casing
Interference can force contractors into slower guidance methods (like wireline) or increase the risk of downtime and re-drills. DigiTrak F5 addresses this by giving operators practical tools to keep walkover tracking usable, even when the site is “loud.”
The core advantage: selectable frequencies
A defining feature of the DigiTrak F5 ecosystem is frequency flexibility. Different frequency bands behave differently in the ground and under interference. With F5 transmitters that support multiple options (including dual-frequency models), crews can switch bands to find a cleaner signal instead of fighting noise for hours.
In real jobs, that means:
- less time stopped to troubleshoot signal quality
- fewer forced changes to guidance method
- more consistent tracking across mixed site conditions
If the environment changes mid-bore—new interference, a different soil layer, more steel—the operator can adapt without restarting the job.
Range and depth for typical crossings
Gas and oil pipeline crossings vary from shallow urban installs to deeper highway or waterway passes. The F5 platform supports standard and extended-range transmitter options to cover common depths used in pipeline HDD. The practical outcome is simple: fewer “signal drop” moments and fewer delays caused by losing the drill head.
Precision and documentation
Pipeline owners and utilities care about two things:
- the pipe is installed safely and within tolerance
- the contractor can prove it
DigiTrak F5 supports this by providing consistent depth/angle readings during drilling and producing a detailed record of the bore path. That documentation helps:
- confirm the bore stayed on plan
- support quality control reviews
- simplify communication with inspectors and project engineers
- reduce disputes when tolerances are tight
On jobs where the spec is strict, being able to show a clean, consistent log is a real advantage.
F5 transmitter types used on pipeline HDD
F5 is not “one transmitter fits all.” Crews choose sondes based on bore length, depth, interference risk, and what extra telemetry they need. Common categories include:
- Standard transmitters for typical pilot bores
- Extended-range transmitters for deeper crossings
- Fluid-pressure transmitters (FPT) that send downhole mud pressure to the surface
- Higher-sensitivity options designed to stay trackable in difficult environments
Fluid pressure telemetry is especially relevant for sensitive crossings—near waterways, wetlands, or critical utilities—because pressure changes can signal loss of returns, fluid migration risk, or other drilling fluid issues that need immediate response.
Where DigiTrak F5 fits in the pipeline HDD workflow
In gas and oil pipeline projects, horizontal directional drilling is not judged by speed alone. It is judged by control. The pipeline must follow a defined corridor, stay within tolerance, and pass inspection without questions. In this workflow, the locating system is not an accessory. It is part of how the job is built.
Planning the alignment and tolerances
Every HDD project starts with constraints. Engineers define where the bore can go, how deep it must stay, and how close it is allowed to pass existing utilities or pipelines. The bend radius is calculated so the pipe can be pulled without overstress. Certain zones are marked as critical: road crossings, rail lines, bridge approaches, or areas near live gas mains.
At this stage, accuracy requirements are set. If the tolerance is tight, the locating system must deliver stable readings and usable records. There is no margin for “close enough.”
Pre-checking interference along the route
Urban and industrial corridors are rarely clean environments. Power lines, traffic systems, steel structures, reinforced concrete, and buried utilities all affect signal quality. Interference is not evenly distributed. It changes as the bore moves forward.
Crews scan the route before drilling to understand where signal distortion is likely to appear. The goal is not to eliminate interference. That is impossible. The goal is to know where it will occur and how to manage it. DigiTrak F5 is designed for this stage because frequency flexibility allows operators to plan around real site conditions instead of reacting under pressure mid-bore.
Selecting the transmitter for the job
Transmitter choice directly affects whether the bore stays controllable. On pipeline HDD, sondes are selected based on real working conditions, not just catalog depth ratings. Crews consider bore length, expected depth, soil type, and interference level. A safety margin is always needed, especially for the deepest section of the crossing.
On higher-risk jobs, pressure telemetry becomes part of the decision. Monitoring downhole fluid pressure does not replace surface checks, but it provides early warning when drilling conditions begin to change. That information can prevent delays, cleanups, or unplanned shutdowns.
Drilling the pilot bore with continuous control
The pilot bore defines the entire project. Every error made here is multiplied during reaming and pullback. For that reason, locating must be continuous and reliable. The operator reads depth and orientation constantly. The driller makes small corrections early, before deviations grow.
The real cost of interference is not signal loss. It is hesitation. When crews do not trust the data, drilling slows down. They stop, recheck, and second-guess every move. DigiTrak F5 helps maintain confidence by keeping the signal usable in noisy zones through frequency selection and stable tracking. That keeps the pilot moving at a controlled, predictable pace.
Recording the bore profile for QC and inspection
Pipeline HDD does not end when the pilot reaches the exit point. The result must be documented. Bore logs show what actually happened underground, rod by rod. These records support quality control, inspection, and final acceptance.
Clear logs reduce friction with inspectors and owners. They also protect the contractor. When questions arise later, the data speaks for itself. In pipeline work, documentation is part of the deliverable.
Reaming and pulling back with confidence
When the pilot bore is clean and verified, the remaining steps become far more predictable. Reaming follows a known path. Pullback forces stay within expected limits. The pipe experiences less stress.
Problems during pullback are often traced back to pilot errors. That is why so much emphasis is placed on the earlier stages. A controlled pilot bore reduces risk, downtime, and cost at the most expensive phase of the project.
Bottom line
DigiTrak F5 is used in gas and oil pipeline HDD projects because it helps crews keep walkover locating reliable in the worst conditions: congested cities, power-line noise, steel and rebar, and tight tolerances. With selectable frequencies, job-ready transmitter options (including fluid pressure), and practical logging for documentation, the F5 supports both sides of pipeline work: install the pipe correctly and prove it was installed correctly.
